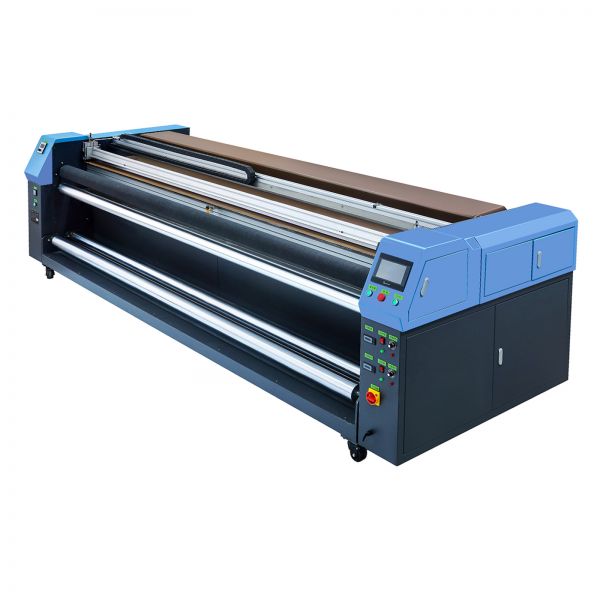

3.3m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials
  • 3.3m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials

Ver imagen más grande y otras vistas (con zoom)

3.3m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials



Codigo del articulo:SIT-KN-3300

Buyer Protection

3.3m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials

Advantages of UV Curable Liquid Coating:
Low cost
- Varnish comsumption: 5-8g/m²
- Low electric comsuption 5kw
- UV lamp 15000 hours life span

Good ductility

soft & tough, easy application to advertising vehicle wraps and other roll material

Eco-friendly

- no VOCs (Valatile Organic Chemicals)
- no white pollution caused by PVC film

No Odor

Only a little smell of epoxy resin.
Coating layer covers the odor of glue and solvent  ink thouroughly

Physical advantages

- adjustable glossiness: max 90°-92°
- scratch resistant : 2000 times rubbing test
- chemical resistant :20 times alcohol wipe
- excellent adhesion: never pulled off
- waterproof :resistant to pouring rain

High yield rates

1-12 m/min coating speed
UV instant curing reduce production downtime

Low scrap rates

- no format limitation on liquid coating film
- no leading and ending substrate waste

High temperature resistant

no qualkity change under 48 hours heat tolerance test at +68℃

Low temperature resistant

no qualkity change under 48 hours cold tolerance test at -20℃

No Hazards

Passing SGS test of EU Restriction of Hazardous Substances

Durabiliy

500 hours SGS ageing test

Long storage time

1 year at room temperature if not exposed under UV curing light

Specification:

Exterior Dimensions 4050x1650x1180mm
Maximum Coating Size 3300mm
Maximum Winding Roll Diameter 40cm
Coating Thickness 8-12um
Coating Speed 1-5m/min
Equipment Weight 1.2t
Applicable Power Supply 380V
Total Machine Power 7.5KW
Curing Method LED cold light source curing, instant on/off, no preheating required
LED Life Expectancy 15000hours
Control System PLC with Touch Screen
Lifting Mode Pneumatic Cylinder Lifting

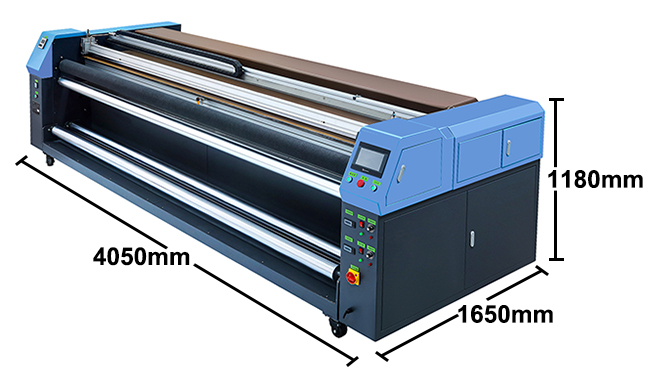

Product size:
Test of liquid coating

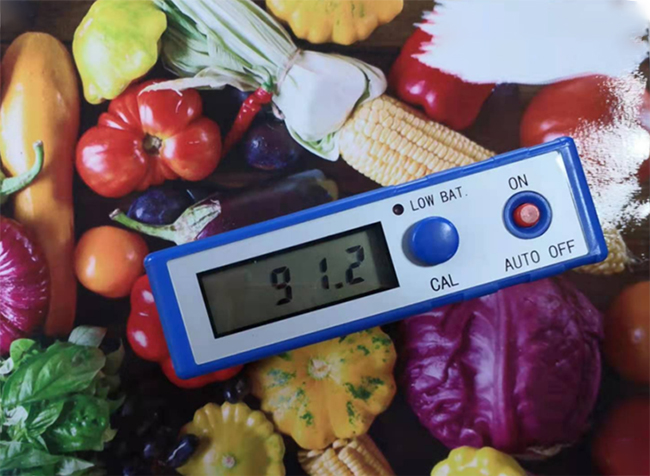

Detected by photometer: liquid coating brightness is as high as 91.2°

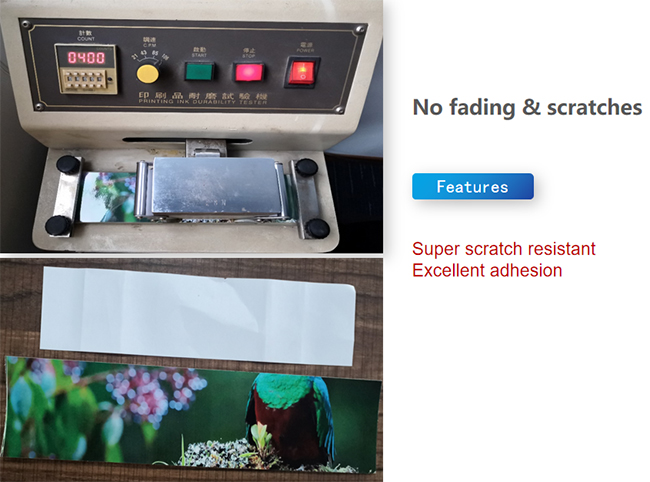

Abrasion test:
The test method is rubbing back and forth 2000 times with a weight of 4 pounds/1.8kg to observe the scratch resistance strength of the liquid coating
Common problems of cold laminating film

- Large loss and high scrap rate

During production, due to the various size of the substrate, and the inconvenience of sticking,  the large amount of waste are generated during film coating, and the scrap rate is high as 15%.

  - Inconvenient sticking, strong smell

The poor ductility of the cold laminating film leads to inconvenience and difficulty in application. Inkjet printing inks and adhesive materials have a heavy odor, and the odor is difficult to volatilize in a confined space.

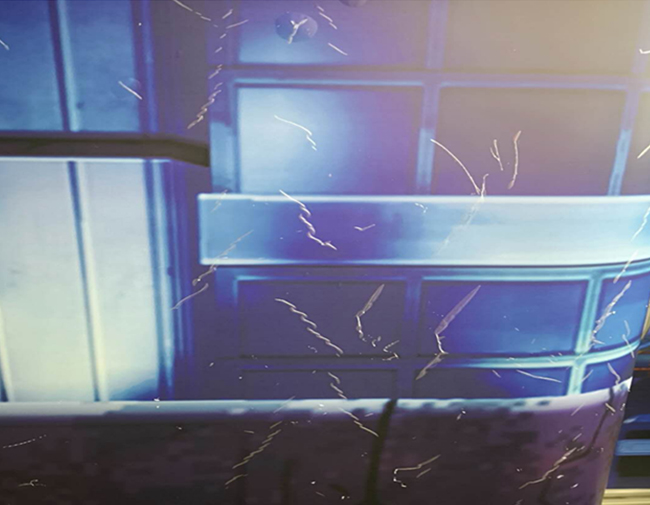

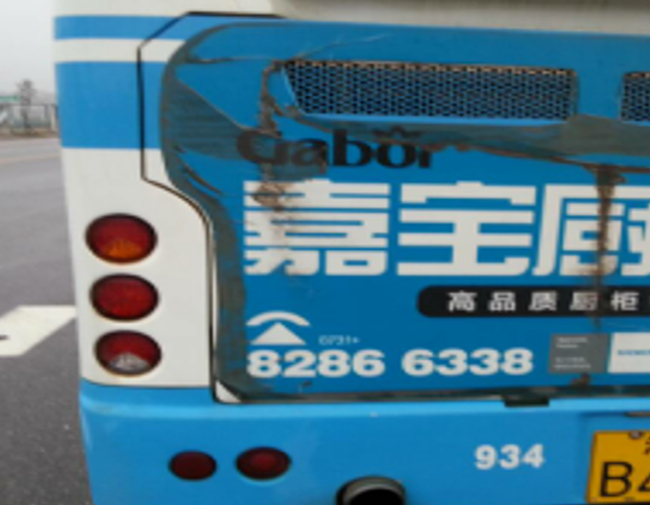

- Crimped edges, black edges, wrinkles, bubbles

The film may easily peel off above +40°C and will easily break below -5°C. Curling, shrinkage, breakage, bubbles and wrinkles happen easily after a short period of time.

Comparison PVC laminating film(×) UV coating(√)
Cost Due to the different sizes of the material, cold laminated film requires a larger inventory, and the scrap rate is close to 15% Coating on substrates of various formats only needs 6 to 10 grams per square meter, which can reduce waste to 2%
Application Poor ductility, inconvenient to use on bus car trailer van sticker Good ductility and easy to use on bus car trailer van sticker
Quality Prone to shrinkage, breakage, separation and wrinkles No break, no yellowing, scratch resistance
(Aging test report, scratch test)
Color consistency Low transmittance of laminating film will darken printing color It has high light transmittance and good color consistency. The surface brightness of the coating can reach 90°
Environmental friendly white pollution, air pollution,water and soil pollution. it takes 30 years to decompose. The coating and the substrate are better combined, and there is no volatile organic compounds.
Human hazards Above 65°C, the laminated PVC film will produce harmful substances and gases such as lead, tin, and chlorine. No harm to human body
(Heavy metal and halogen test report)
Smell Heavy odor: the odor is difficult to dissipate in a confined space. Only a little smell of epoxy resin. 1% solvents solves the problem of volatility and irritation.


Material that cannot be coated by cold laminating film

UV picture, leather, tablecloth, knife scraping cloth, wallpaper, wood grain paper, etc. the surface cannot be protected by cold laminating film from color ink fixation and anti-scratch tratment, After a period of time, the picture will be decolorized and the texture is poor.

Liquid coating replace cold laminating film

What is liquid coating ?

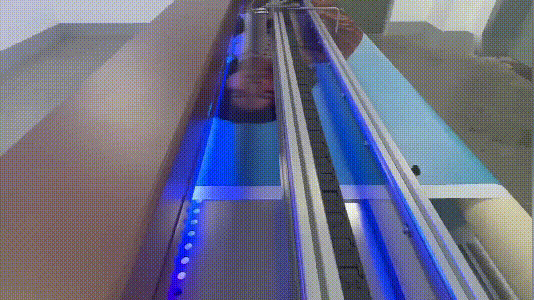

- Liquid coating cured instantly by Kana LED UV instant curing coating machine forms a glossy or matte protective film on the surface of soft roll inkjet printing product.

- Coating is high temperature and low temperature resistant (-20°C to 68 °C), anti-yellowing, anti-fracture, scratch-resistant, friction-resistant, environmental friendly, pollution free, safe and energy saving(5kw).

- Under real outdoor test, Kana coating can enduring at least 2 years of sun burning, UV light, water pouring.

Physical characteristics of liquid coating

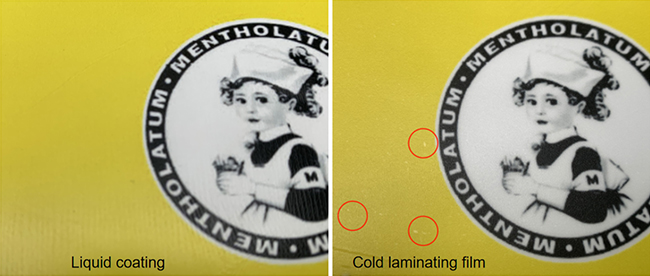

Due to the limitation of the cold laminating film, micro-bubbles (marked in red) are prone to appear on the surface of the product, and the surface of the liquid coating is flat without defects.
