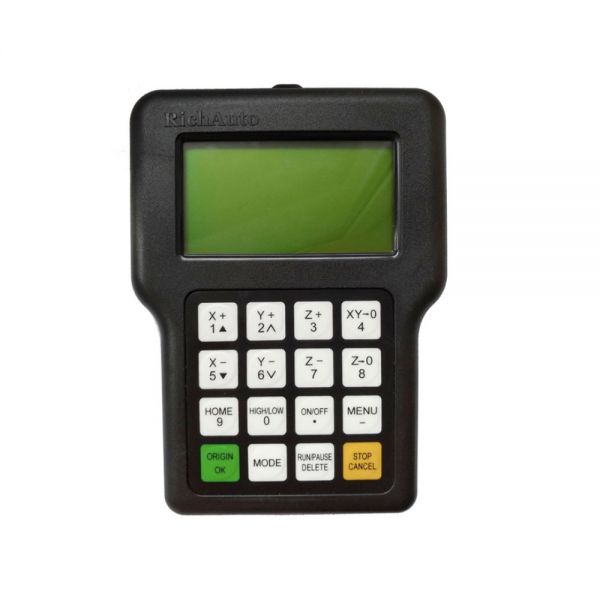

RichAuto DSP Multi-Spindle Motion Control System-A15

Ver imagen más grande y otras vistas (con zoom)

RichAuto DSP Multi-Spindle Motion Control System-A15

Codigo del articulo:CS-RA-A15

Precio Unitario : Q 5,656/pc (Aviso de Descuento) (Tiempo entrega 8-15 días)

Cantidad: pc(s) Costo Total :
GTQ Q5,656
Peso de Envio: 4.4lb (2kg) Flete
item añadido al carro

0 total en su carro, Total del carrito: Q

Packing Size: 110 x 150 x 30mm
Packing Weight: 2kg

A1X Manua

El vendedor asume toda la responsabilidad de este listado

Envío y manipulación

Cantidad: Pais:

1.Si opta por enviar por expreso, se puede ver que el honorario del envío es un poco alto, pero puede entregar a su puerta dentro de 3-5 días, sólo tiene que hacer el pago y esperar.
2.Si opta por enviar por mar, la tarifa de envío es más bajo, y hay que ir a los puertos para que el liquidación en la Aduana, y tomar la mercancía desde el puerto hasta su casa por sí mismo. Generalmente se toma from10 a 30 días, dependiendo de la dirección del destinatario.

Tiempo de Manejo

Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado.

Enviar de Donde?

Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China.

política de devolución

Las compras pueden devolverse en las siguientes condiciones :: 1)Hay problemas de calidad después de abrir el paquete.; 2) Los productos son diferentes que en la lista de pedidos.; 3)Los productos se dañaron irreparablemente durante el transporte.

Detalles del pago

Forma de pago

1.PayPal (pagos en línea)
2.Tarjeta de crédito
3.Transferencia bancaria(T / T)
4.Western Union pago en línea / fuera de línea

Historial De Transacciones

Transacciones:

Multi-Spindle Motion Control System-A15

Descriptions:
1.High performance core processing CPU: The eight nuclear processing CPU, faster calculation, and stronger processing ability.
2.Simple handle structure with buttons controls: 16 buttons operation mode, comfortable hand-held end, easy to learn easy to use, simple and quick.
3.Multiple data transmission, large storage capacity support: Completely off-line operation and support a variety of mobile storage transmission methods; 512MB internal memory, can read large capacity storage mobile device.
4.Intelligent reading processing documents function: Auto Now series products is more smart in proof reading of the processing documents, to new processing files, only reading before the first time operation. And in the process of reading, it can also skip checking according to customers’ demands that save the users’ valuable time in great degree.
5.Intelligent memory function: support power lost and breakpoint processing; not only storage the process position, but also memory the file name, ensure user continue processing from breakpoint quickly & accurately.
6.Two kinds of processing mode choice: high precision mode and to ensure the machining precision and quality of high-speed mode, that ensure the process efficiency, saving processing time.
7.Security checking & alarm: Add security warning system and abnormal reminder functions, such as back to zero abnormal shaft mark, distance mode mobile safety tips, processing beyond the function such as display, greatly guarantee the accuracy and consistency processing.
8.More perfect encryption functions: Hardware encryption, set parameters encryption, running time of encryption and the internal important processing file encryption, and other functions, the modification, prevent delete prevent copying, and to ensure the customers’ technical information and assets safe.
9.Anti-jamming performance ids greatly increased: Though some CE test, anti-jamming greatly improved.
10.Department stronger: Auto Now based version 8 series of 8 out into the support I/O mouth custom editing functions, the user can completely according to their own needs editing and defined, and may expand to 32 input 32 output; Based on 8 nuclear processing CPU, but also for secondary development, for the customer equipment of the special function, special purpose to add, meet the needs of different industries, with period is short, the cost is low, the secrecy id good wait for a characteristic.

Features:
1.Support cylinder stator multi-cutter control mode.
2.Identify ‘T’ order achieved the cutter automatic switching, support processing more cutters at the same time.
3.Define the amount of the cutters as customers’ requirements.
4.Easy install and adjust.
5.With simple processing definition, easy operate.
6.Automatic calculates cutters separation distance; ensure multiple cutters sharing the same work piece coordinate system.

Detail:

Parameters:
Product Model: Rich Auto----A15
CPU: DSP
Internal Memory: 512MB
Display Screen: 128 x 64 Monochrome LCD
Communication Port: U disk, USB cable
Controlled Axis Number: 3 axes
Control Signal: Differential signal
Drive System: Step motor / Servo motor
Min Input Unit: 0.001mm
No Volt Protection: Support
Automatically Adjustable High: Support
External Power Supply Voltage: 24V DC
Manual Mode: Continuous, point move, distance
Interpolation Way: line, arc
Soft / Hard Limit: Support
Max. Pulse Frequency: 1M/S
Password Protection: Support
Support Language: simple Chinese, traditional Chinese, English, other languages
Standard Configuration: (1) DSP Handle (1) 50 core cable (1) USB cable (1) 8 I/O Wiring board (1) data CD
