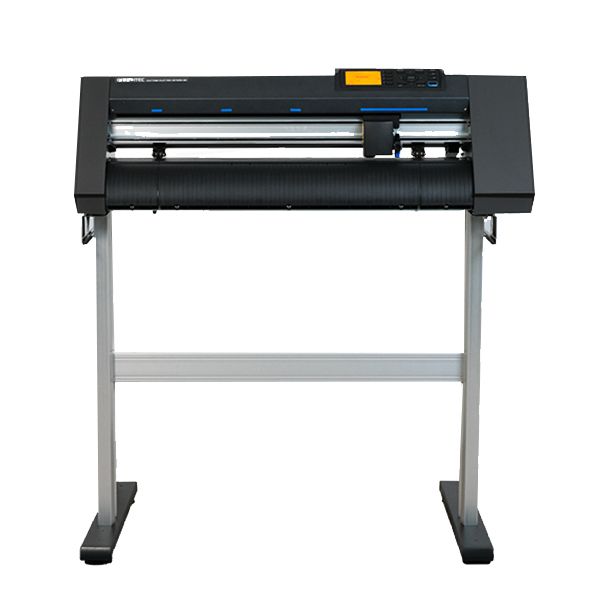

24" Graphtec CE7000 High Performance Vinyl Cutter Plotter





Description:
The Graphtec CE7000 Vinyl Plotter Series is now available in 3 widths: 15", 24", and 50". It is simply put one of the most cost effective cutting plotters on the market for the garment decoration, sign graphics, PRINT and CUT graphics, and automotive markets, among others.
The CE7000 Series is equipped with great features such as a registration mark sensor for print & cut jobs, perforation cutting ability and a guaranteed cut accuracy of over 15ft at an extremely competitive and cost effective price point.

Details:

DATALINK BARCODE
Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button.
DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software.
The CE7000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.

CONTOUR & DIE CUT

Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

ARMS 8.0

A new and improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand’s free operation. The reading of Registration marks is faster increasing productivity.

NETWORK CONNECTION

A network connection is now possible through a network interface enabling the use of TCP/IP protocols to transfer cut data.

USB OFFLINE OPERATION
A new secondary USB port has been added for placing thumb drives so jobs can be uploaded and cut without the need of a computer. Select barcode function or select file directly from the thumb drive.

Specifications:

Item CE7000-60
Configuration Grit roller with digital servo drive system
Maximum cutting area (W x L) 24" x 164'
Cutting area of guaranteed accuracy (W x L)
(when using the basket)
23" x 79"
Mountable media width 2"
28"
Number of push rollers 2 rollers
Maximum cutting speed 36"/s, at 45º direction
Maximum acceleration 69.6' (21.2 m/s2), at 45º direction
Maximum cutting force 4.41 N (450 gf) in 38 steps
Minimum character size Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Repeat-ability Max. 0.1 mm in plot up to 2 m (*1)
Mountable number of tools 1 tool
Blade type Supersteel
Pen type Oil-based ballpoint, Water-based fiber-tip pen
Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film,up to 25 mil (.63mm) cutting Graphtec Rhinestone Stencil material GRS1510-m
Interface USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory 2 MB
Command sets GP-GL / HP-GL™ (Set by command or auto-detect)
Display Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Registration mark sensing system Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation,4-points axis alignment, Auto mark detect.
Alignment accuracy Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption 120 VA
Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)
(with Basket)
Approx. 39.6" x 23" x 43"
(39.6" x 36.9" x 43")
Weight (Approx.)
(with Basket)
51 lbs (23 kg)
55.6 lbs (25.2 kg)
Compatible OS (*2) Windows 10 / 8.1 / 7
Mac OSX 10.6 - 10.11 - 10.12 - 10.15
Included software Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac),Windows driver
Compatibility Standards Safety PSE, UL/cUL, CE mark
EMC VCCI Class A, FCC Class A, CE mark


Applications:
- Stickers/decals
- Window signage
- Window tint film
- Heat transfer apparel
- Paint protection film


What's included in the Graphtec CE7000?

Software (all models):
- Graphtec Pro Studio - 1 License: Extremely Powerful Design Software (For Windows)
- Graphtec Studio (For MAC)
- Cutting Master 4 (For Adobe Illustrator & CorelDRAW Integration)
- Windows Driver

Accessories:
- Blade Holder
- Loupe (For setting blade depth)
- Fiber-tip pen holder
- Water-based Fiber-tip pen
- Power cord
- USB cable
- DVD-ROM - User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license),
- Graphtec Studio (Mac), Cutting Master4.
- Printed Documents - Setup Manual, Cutter Blade Manual, and Safety Manual

Optional:
- Basket (CE7000-60 and CE7000-130 models)
- Carrier Sheet Table tray for loading cardstock and thin rigid substrates (CE7000-40 and CE7000-60 models)
